General
|
CAMERA TYPE
Interchangeable lens digital camera
|
LENS MOUNT
E-mount
|
|
Size & Weight
|
WEIGHT (MAIN UNIT ONLY) (approx.)
715 g (1 lb 9.3 oz) (with battery and memory card included), 630 g (1 lb 6.3 oz) (body only)
WEIGHT (INCLUDING SUPPLIED ACCESSORIES) (approx.)
1.015 kg (2 lb 3.8 oz) (with XLR Handle, battery pack, SD card)
|
DIMENSIONS (W X H X D) (BODY WITHOUT PROTRUSIONS) (approx.)
129.7 mm x 77.8 mm x 84.5 mm (5 1/8 x 3 1/8 x 3 3/8 inches) (body without protrusions)
|
|
Power
|
POWER CONSUMPTION
[Movie] Approx. 7.3W (with FE 28-70mm F3.5-5.6 OSS lens attached), [Still image] Approx. 3.5W (with FE 28-70mm F3.5-5.6 OSS lens attached)
|
BATTERY OPERATING TIME
Approx. 95 min (Actual recording, CIPA standard) 11, Approx. 135 min (Continuous recording, CIPA standard), Approx. 570 shots (still images, CIPA standard)
|
|
Operation
|
OPERATING TEMPERATURE
0°C to 40°C, 32°F to 104°F
|
STORAGE TEMPERATURE
-20°C to +55°C, -4°F to +131°F
|
|
Recording Format (Video)
|
XAVC HS
[XAVC HS 4K] XAVC HS 4K 59.94p/50p 200Mbps 4:2:2 10bit MPEG-H HEVC / H.265, XAVC HS 4K 59.94p/50p 150Mbps 4:2:0 10bit MPEG-H HEVC / H.265, XAVC HS 4K 59.94p/50p/23.98p 100Mbps 4:2:2 10bit MPEG-H HEVC / H.265, XAVC HS 4K 59.94p/50p 75Mbps 4:2:0 10bit MPEG-H HEVC / H.265, XAVC HS 4K 59.94p/50p 45Mbps 4:2:0 10bit MPEG-H HEVC / H.265, XAVC HS 4K 23.98p 100Mbps 4:2:0 10bit MPEG-H HEVC / H.265, XAVC HS 4K 23.98p 50Mbps 4:2:2 10bit MPEG-H HEVC / H.265, XAVC HS 4K 23.98p 50Mbps 4:2:0 10bit MPEG-H HEVC / H.265, XAVC HS 4K 23.98p 30Mbps 4:2:0 10bit MPEG-H HEVC / H.265, XAVC HS 4K 119.88p/100p 280Mbps 4:2:2 10bit MPEG-H HEVC / H.265, XAVC HS 4K 119.88p/100p 200Mbps 4:2:0 10bit MPEG-H HEVC / H.265
XAVC S
[XAVC S 4K] XAVC S 4K 59.94p/50p 200Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S 4K 59.94p/50p 150Mbps 4:2:0 8bit MPEG-4 AVC / H.264, XAVC S 4K 29.97p/25p 140Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S 4K 23.98p 100Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S 4K 29.97p/25p/23.98p 100Mbps 4:2:0 8bit MPEG-4 AVC / H.264, XAVC S 4K 29.97p/25p/23.98p 60Mbps 4:2:0 8bit MPEG-4 AVC / H.264, XAVC S 4K 119.88p/100p 280Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S 4K 119.88p/100p 200Mbps 4:2:0 8bit MPEG-4 AVC / H.264, [XAVC S HD] XAVC S HD 59.94p/50p/29.97p/25p/23.98p 50Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S HD 59.94p/50p/29.97p/25p/23.98p 50Mbps 4:2:0 8bit MPEG-4 AVC / H.264, XAVC S HD 59.94p/50p 25Mbps 4:2:0 8bit MPEG-4 AVC / H.264, XAVC HD 29.97p/25p 16Mbps 4:2:0 8bit MPEG-4 AVC / H.264, XAVC S HD 119.88p/100p 100Mbps 4:2:0 8bit MPEG-4 AVC / H.264, XAVC S HD 119.88p/100p 60Mbps 4:2:0 8bit MPEG-4 AVC / H.264,
|
XAVC S-I
[XAVC S-I 4K] XAVC S-I 4K 59.94p 600Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S-I 4K 50p 500Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S-I 4K 29.97p 300Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S-I 4K 25p 250Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S-I 4K 23.98p 240Mbps 4:2:2 10bit MPEG-4 AVC / H.264, [XAVC S-I HD] XAVC S-I HD 59.94p 222Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S-I HD 50p 185Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S-I HD 29.97p 111Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S-I HD 25p 93Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S-I HD 23.98p 89Mbps 4:2:2 10bit MPEG-4 AVC / H.264,
XAVC S-I DCI
[XAVC S-I DCI 4K] XAVC S-I DCI 4K 59.94p 600 Mbps 4:2:2 10 bit MPEG-4 AVC / H.264, XAVC S-I DCI 4K 50p 500 Mbps 4:2:2 10 bit MPEG-4 AVC / H.264, XAVC S-I DCI 4K 29.97p 300 Mbps 4:2:2 10 bit MPEG-4 AVC / H.264, XAVC S-I DCI 4K 25p 250 Mbps 4:2:2 10 bit MPEG-4 AVC / H.264, XAVC S-I DCI 4K 23.98p/24.00p 240 Mbps 4:2:2 10 bit MPEG-4 AVC / H.264
|
|
Recording Format (Audio)
|
RECORDING FORMAT (AUDIO)
LPCM 2ch (48kHz 16bit), LPCM 2ch (48kHz 24bit), LPCM 4ch (48kHz 24bit), MPEG-4 AAC-LC 2ch
|
|
|
Recording Frame Rate
|
XAVC HS
[XAVC HS 4K] 3840×2160/119.88p, 100p, 59.94p, 50p, 23.98p
XAVC S
[XAVC S 4K] 3840×2160/119.88p, 100p, 59.94p, 50p, 29.97p, 25p, 23.98p, [XAVC S HD] 1920×1080/59.94p, 50p, 29.97p, 25p, 23.98p
|
XAVC S-I
[XAVC S-I 4K] 3840×2160/59.94p, 50p, 29.97p, 25p, 23.98p, [XAVC S-I HD] 1920×1080/59.94p, 50p, 29.97p, 25p, 23.98p
XAVC S-I DCI
[XAVC S-I DCI 4K] 4096×2160/59.94p, 50p, 29.97p, 25p, 23.98p, 24.00p
|
|
Slow & Quick Motion
|
XAVC HS
XAVC HS 4K: [NTSC mode] 1fps, 2fps, 4fps, 8fps, 15fps, 30fps, 60fps, 120fps, [PAL mode] 1fps, 2fps, 3fps, 6fps, 12fps, 25fps, 50fps, 100fps
XAVC S
XAVC S 4K: [NTSC mode] 1fps, 2fps, 4fps, 8fps, 15fps, 30fps, 60fps, 120fps, [PAL mode] 1fps, 2fps, 3fps, 6fps, 12fps, 25fps, 50fps, 100fps, XAVC S HD: [NTSC mode] 1fps, 2fps, 4fps, 8fps, 15fps, 30fps, 60fps, 120fps, 240fps, [PAL mode] 1fps, 2fps, 3fps, 6fps, 12fps, 25fps, 50fps, 100fps, 200fps
|
XAVC S-I
XAVC S-I 4K: [NTSC mode] 1fps, 2fps, 4fps, 8fps, 15fps, 30fps, 60fps, 120fps, [PAL mode] 1fps, 2fps, 3fps, 6fps, 12fps, 25fps, 50fps, 100fps, XAVC S-I HD: [NTSC mode] 1fps, 2fps, 4fps, 8fps, 15fps, 30fps, 60fps, 120fps, 240fps12, [PAL mode] 1fps, 2fps, 3fps, 6fps, 12fps, 25fps, 50fps, 100fps, 200fps12
XAVC S-I DCI
XAVC S-I DCI 4K: 24.00p: 1fps, 2fps, 3fps, 6fps, 12fps, 24fps, 48fps, [NTSC mode] 59.94p/29.97p/23.98p: 1fps, 2fps, 4fps, 8fps, 15fps, 30fps, 60fps, [PAL mode] 50p/25p: 1fps, 2fps, 3fps, 6fps, 12fps, 25fps, 50fps
|
|
Recording/Playback Time
|
XAVC HS
[XAVC HS 4K] 59.94p/50p 200M When using CEA-G160T (160 GB) Approx. 80 minutes, When using CEA-G80T (80GB) Approx. 40 minutes, 59.94p/50p 150M When using CEA-G160T (160 GB) Approx. 100 minutes, When using CEA-G80T (80GB) Approx. 50 minutes, 59.94p/50p 100M When using CEA-G160T (160 GB) Approx. 150 minutes, When using CEA-G80T (80GB) Approx. 75 minutes, 59.94p/50p 75M When using CEA-G160T (160 GB) Approx. 190 minutes, When using CEA-G80T (80GB) Approx. 95 minutes, 59.94p/50p 45M When using CEA-G160T (160 GB) Approx. 290 minutes, When using CEA-G80T (80GB) Approx. 140 minutes
XAVC S
[XAVC S 4K] 59.94p/50p 200M When using CEA-G160T (160 GB) Approx. 80 minutes, When using CEA-G80T (80GB) Approx. 40 minutes, 59.94p/50p 150M When using CEA-G160T (160 GB) Approx. 100 minutes, When using CEA-G80T (80GB) Approx. 50 minutes, [XAVC S HD] 59.94p/50p 50M When using CEA-G160T (160 GB) Approx. 270 minutes, When using CEA-G80T (80GB) Approx. 130 minutes, 59.94p/50p 25M When using CEA-G160T (160 GB) Approx. 430 minutes, When using CEA-G80T (80GB) Approx. 210 minutes
XAVC S-I
[XAVC S-I 4K] XAVC S-I 4K 59.94p/50p When using CEA-G160T (160 GB) Approx. 25 minutes, When using CEA-G80T (80GB) Approx. 10 minutes, [XAVC S-I HD] 59.94p/50p When using CEA-G160T (160 GB) Approx. 75 minutes, When using CEA-G80T (80GB) Approx. 35 minutes
|
XAVC S-I DCI
[XAVC S-I DCI 4K] 59.94p/50p When using CEA-G160T (160 GB) Approx. 25 minutes, When using CEA-G80T (80GB) Approx. 10 minutes
PROXY AUDIO
XAVC Proxy: AAC-LC, 128kbps, 2 channels
PROXY VIDEO
[XAVC HS HD] MPEG-H HEVC/H.265 1920 x 1080 4:2:0 10bit 16Mbps, 1920 x 1080 4:2:0 10bit 9Mbps, [XAVC S HD]MPEG-4 AVC/H.264 1280 x 720 4:2:0 8bit 6Mbps
|
|
RAW Output
|
RAW Output
HDMI: 4264 x 2408 (59.94p/50p/29.97p/25p/23.98p), 16bit
|
|
|
Other Video Function
|
VIDEO FUNCTIONS
Audio Level Display, Audio Rec Level, TC/UB, Creative Look, Gamma Display Assist, PAL/NTSC Selector
|
|
|
Camera Section
|
SENSOR TYPE
35mm full frame (35.6 x 23.8 mm), Exmor R CMOS sensor
PIXELS
Approx. 10.3 megapixels (effective) for movies, Approx. 12.1 megapixels (effective) for Still images, Approx. 12.9 megapixels (total)
|
SENSITIVITY
[Movie] ISO 80-102400 equivalent (Expandable to ISO 409600), AUTO (ISO 80-12800, selectable lower limit and upper limit), [Still image] ISO 80-102400 (Expandable to ISO 40- 409600), AUTO (ISO 80-12800, selectable lower limit and upper limit)
SHUTTER SPEED
Movie: 1/8000 to 1/4 (1/3 steps), up to 1/60 in AUTO mode (up to 1/30 in Auto slow shutter mode) Still image: 1/8000 to 30 sec, Bulb
|
|
White Balance
|
WHITE-BALANCE MODES
Auto / Daylight / Shade / Cloudy / Incandescent / Fluorescent / Flash / Underwater / Color Temperature (2500 to 9900K) & color filter / Custom
|
|
|
Gamma
|
GAMMA CURVE
Off / PP1-PP6, PP10-PP11, Parameters: Black level, Gamma (Movie, Still, S-Cinetone, Cine1-4, ITU709, S-Log3, HLG, HLG1-3), Black Gamma, Knee, Color Mode, Saturation, Color Phase, Color Depth, Detail, Copy, Reset / PPLUT1-4, Parameters: Basic Look
|
|
|
Latitude
|
Latitude
15+ stop (S-Log3)
|
|
|
Focus System
|
Type
Fast Hybrid AF (phase-detection AF / contrast-detection AF)
FOCUS POINT
[Movie] 627 points, [Still image] 35mm full frame: 759 points (phase-detection AF)
SENSITIVITY RANGE
EV-6 to EV20 (ISO100 equivalent with F2.0 lens attached)
|
FOCUS MODE
[Movie] AF-C, MF, [Still image] AF-A (Automatic AF), AF-S (Single-shot AF), AF-C (Continuous AF), DMF (Direct Manual Focus), Manual Focus
FOCUS AREA
[Movie] Wide / Zone / Center Fix / Spot / Expanded Spot [Still image] Wide / Zone / Center Fix / Spot / Expanded Spot / Tracking
OTHER FOCUS FEATURES
Eye AF ([Movie] Human (Right/Left Eye Select, [Still image] Human (Right/Left Eye Select) / Animal), [Movie] AF Subj. Shift Sensitivity, [Movie] AF Transition Speed, [Still] AF Track Sens., Face detection (Face Priority in AF), Face Priority in Multi Metering, Regist. Faces Priority, Focus Magnifier (35mm full frame: 2.1x / 4.1x APS-C: 1.5x / 3.0x)
|
|
Exposure Control
|
METERING SENSITIVITY
EV-3 to EV20 (at ISO100 equivalent with F2.0 lens attached)
|
EXPOSURE MODES
[Movie] Programmed AE (P) / Aperture priority (A) / Shutter-speed priority (S) / Manual (M) / Flexible Exp. Mode, [Still images] Programmed AE (P) / Aperture priority (A) / Shutter-speed priority (S) / Manual (M)
|
|
Recording (Still Image)
|
RECORDING FORMAT
JPEG (DCF Ver. 2.0, Exif Ver. 2.32, MPF Baseline compliant), HEIF (MPEG-A MIAF compliant), RAW (Sony ARW 5.0 format compliant)
|
IMAGE SIZE
Image size [3:2] 35mm full frame L:12M, M:5.1M, S:3.0M, APS-C L:5.1M, M:3.0M, S:1.3M, Image size [4:3] 35mm full frame L:11M, M:4.6M, S:2.7M, APS-C L:4.6M, M:2.7M, S:1.1M Image size, [16:9] 35mm full frame L:10M, M:4.3M, S:2.6M, APS-C L:4.3M, M:2.6M, S:1.1M, Image size [1:1] 35mm full frame L:8M, M:3.4M, S:2.0M, APS-C L:3.4M, M:2.0M, S:0.8M
|
|
Playback
|
PLAYBACK FUNCTIONS
Index view, Folder selection (Date / Still / Movie), Photo capture, 4Ch audio monitoring, Auto Review (stills), Image orientation (stills), Protect (stills), Rating (stills), Display as Group (stills)
|
|
|
Interface
|
TC INPUT/TC OUTPUT
Multi/Micro USB, TC IN13
AUDIO INPUT
3.5 mm Stereo minijack, XLR handle: [INPUT1][INPUT2] XLR/TRS-type 3-pin(female) (x2), line/mic/mic +48V selectable, Mic Reference -40 to -60 dBu / [INPUT3] 3.5 mm Stereo minijack)
USB
USB Type-C
HEADPHONE OUTPUT
Yes (3.5 mm Stereo minijack)
|
SPEAKER OUTPUT
Built-in, monaural
HDMI OUTPUT
HDMI jack (Type-A), YCbCr 4:2:2 10bit / RGB 8bit
MULTI INTERFACE SHOE
With Digital Audio Interface
Bluetooth
Bluetooth Standard Ver. 5.0 (2.4GHz band))
|
|
Media
|
MEDIA TYPE
CFexpress Type A / SD card (x2), Simult. Rec, Sort, Auto Switch Media, Copy
|
|
|
Monitoring
|
LCD
7.5cm (3.0-type) type, approx. 2.36M dots, touch panel, Opening Angle:Approx. 176 deg., Rotation Angle:Approx. 270 deg.
|
|
|
Built-in Microphone
|
BUILT-IN MICROPHONE
Built-in, stereo
|
|
|
File System
|
FILE SYSTEM
FAT12, 16, 32, exFAT
|
|
|
Zoom
|
ZOOM FUNCTION
Zoom ring rotate, Clear Image Zoom ([Movie] Approx. 1.5x (4K), Approx. 2x (HD) [Still image] Approx. 2x ), Digital zoom ([Movie] 35mm full frame: approx. 4x, APS-C: approx. 4x, [Still image] 35mm full frame: L: approx. 4x, M: approx. 6.1x, S: approx. 8x, APS-C: L: approx. 4x, M:approx. 5.2x, S: approx. 8x), Smart zoom ([Still image] 35mm full frame: M: approx. 1.5x, S: approx. 2x, APS-C: M:approx. 1.3x, S: approx. 2x)
|
|
|
Still Image Function
|
SHUTTER
Mechanical shutter / Electronic shutter
DRIVE MODES
Single Shooting, Continuous shooting (Hi+/Hi/Mid/Lo selectable), Self-timer, Self-timer (Cont.), Bracket: Single, Bracket: Cont., White Balance bracket, DRO bracket
CONTINUOUS SHOOTING SPEED
Hi+: 10 fps, Hi: 8 fps, Mid: 6 fps, Lo: 3 fps
|
NOISE REDUCTION
Long exposure NR: On/Off, available at shutter speeds longer than 1 sec., High ISO NR: Normal / Low / Off
FLASH CONTROL
Sony α System Flash compatible with Multi Interface Shoe, attach the shoe adaptor for flash compatible with Auto-lock accessory shoe, Flash sync speed 1/250 sec.
OTHER STILL IMAGE FUNCTION
Electronic Front Shutter Curtain, Silent Shooting, Anti-flicker Shoot
|
|

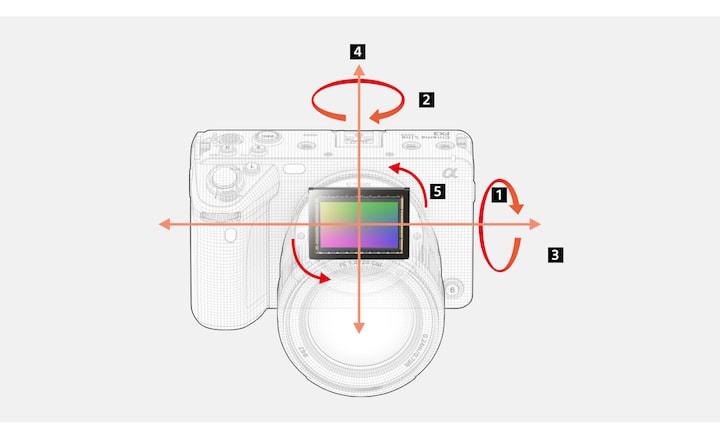

Image Stabilization
|
Type
Image Sensor-Shift mechanism with 5-axis compensation (Compensation depends on lens specifications)
MODE
[Movie] Active / Standard / Off, [Still image] On / Off
|
COMPENSATION EFFECT (STILL IMAGES)
5.5 stops (based on CIPA standard. Pitch/yaw shake only. With Planar T* FE 50mm F1.4 ZA lens mounted. Long exposure NR off.)
|
|
Custom Function
|
CUSTOM FUNCTION
Custom key settings, My Menu, My Dial Settings, Reg. Custom Shoot Set
|
|
|
Lens Compensation
|
LENS COMPENSATION
Shading, Chromatic Aberration, Distortion, Breathing (Movie)
|
|
|
Wi-Fi/NFC
|
SUPPORTED FORMAT
IEEE 802.11a/b/g/n/ac
FREQUENCY BAND
2.4GHz band/5GHz band
|
SECURITY
WEP/WPA-PSK/WPA2-PSK
NFC
ー
|
|
FTP Transfer
|
FTP Transfer
Wired LAN (USB-LAN), USB Tethering, Wi-Fi
|
|
|
Supplied Accessories
|
SUPPLIED ACCESSORIES
Rechargeable Battery NP-FZ100; Battery Charger BC-ZD117; XLR handle unit; Accessory shoe kit; Body cap; Accessory shoe cap; Handle shoe cap
|
|
